POM CNC Machining Services

Precision CNC machining for POM, Delrin and acetal parts, with tolerances down to ±0.005 mm. From prototypes to low-volume production, with fast 3–5 day lead times and no MOQ.

YuanYi POM Machining Capabilities and Tolerances

We machine custom POM CNC parts, Delrin parts and acetal parts for prototypes and low-volume production, including complex milled, turned and Swiss-machined components. Our equipment supports small precision parts, larger plastic components and tight-tolerance features.

Capability	Specification
Max. Part Size	2300 × 1300 × 600 mm
Typical Tolerance	±0.005 mm
Swiss Machining Tolerance	Up to ±0.003 mm
Minimum Feature Size	Ø1 mm
Minimum Wall Thickness	0.25 mm, depending on geometry
Surface Finish	Ra 0.4–3.2 μm
Prototype Lead Time	3–5 working days
Production Volume	Prototype to low-volume production
Machining Processes	3-Axis, 4-Axis, 5-Axis, Turning, Swiss, Mill-Turn, Gantry

Choose the Right CNC Process for Your POM Parts

CNC Milling
For complex POM CNC milling parts with pockets, holes, slots and multi-side features.

CNC Turning
For round POM CNC turning parts such as bushings, rollers, sleeves and shafts.

Swiss Machining
For small precision Delrin parts and acetal parts such as pins, spacers and miniature shafts.

Mill-Turn Machining
For complex POM CNC parts combining turned and milled features in one setup.

POM and Delrin Materials We Work With

We machine a range of POM materials, including Delrin, POM-H, POM-C and specialty acetal grades for different mechanical, wear and electrical requirements.

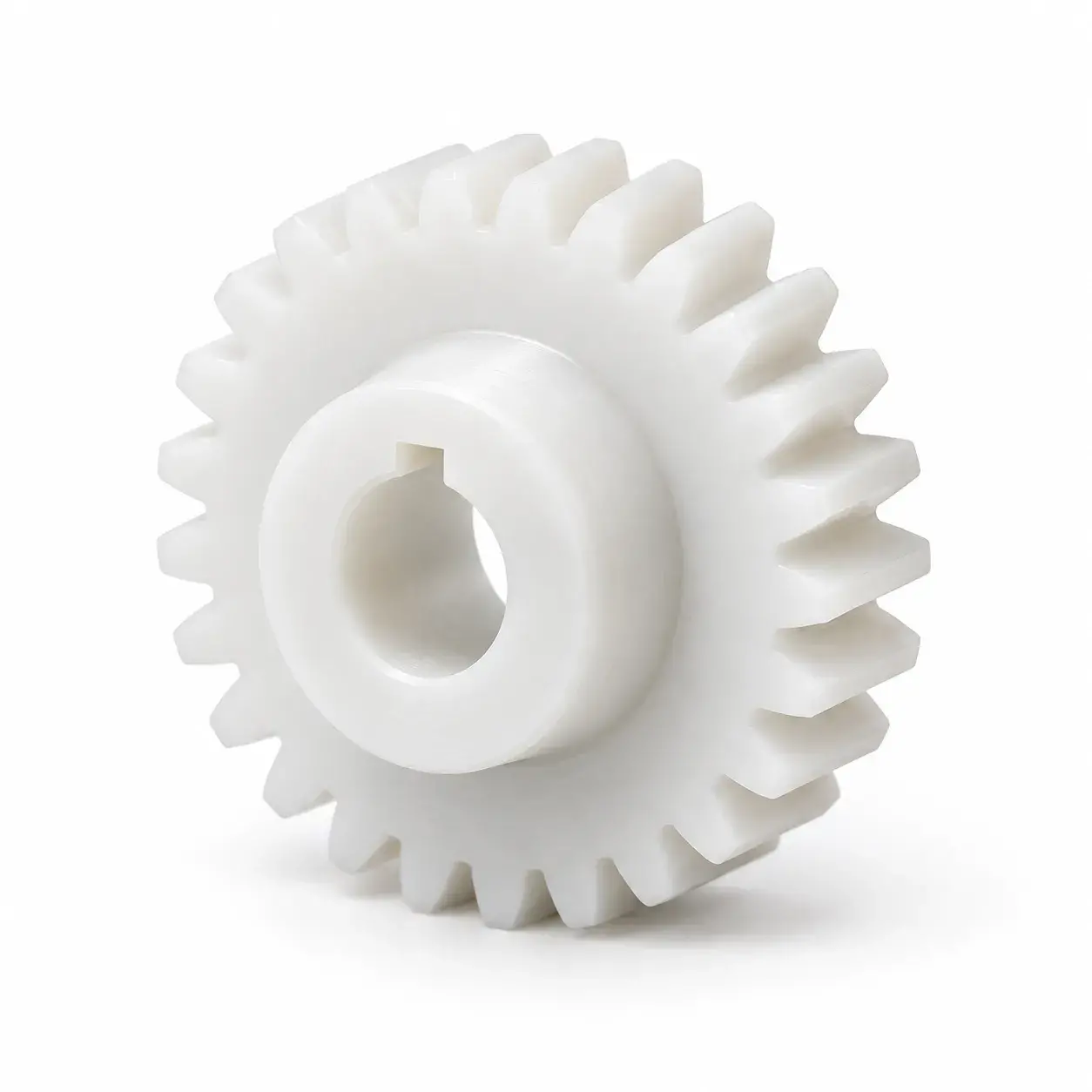

Delrin / POM-H

High stiffness, strength and wear resistance for gears, bushings and precision mechanical parts.

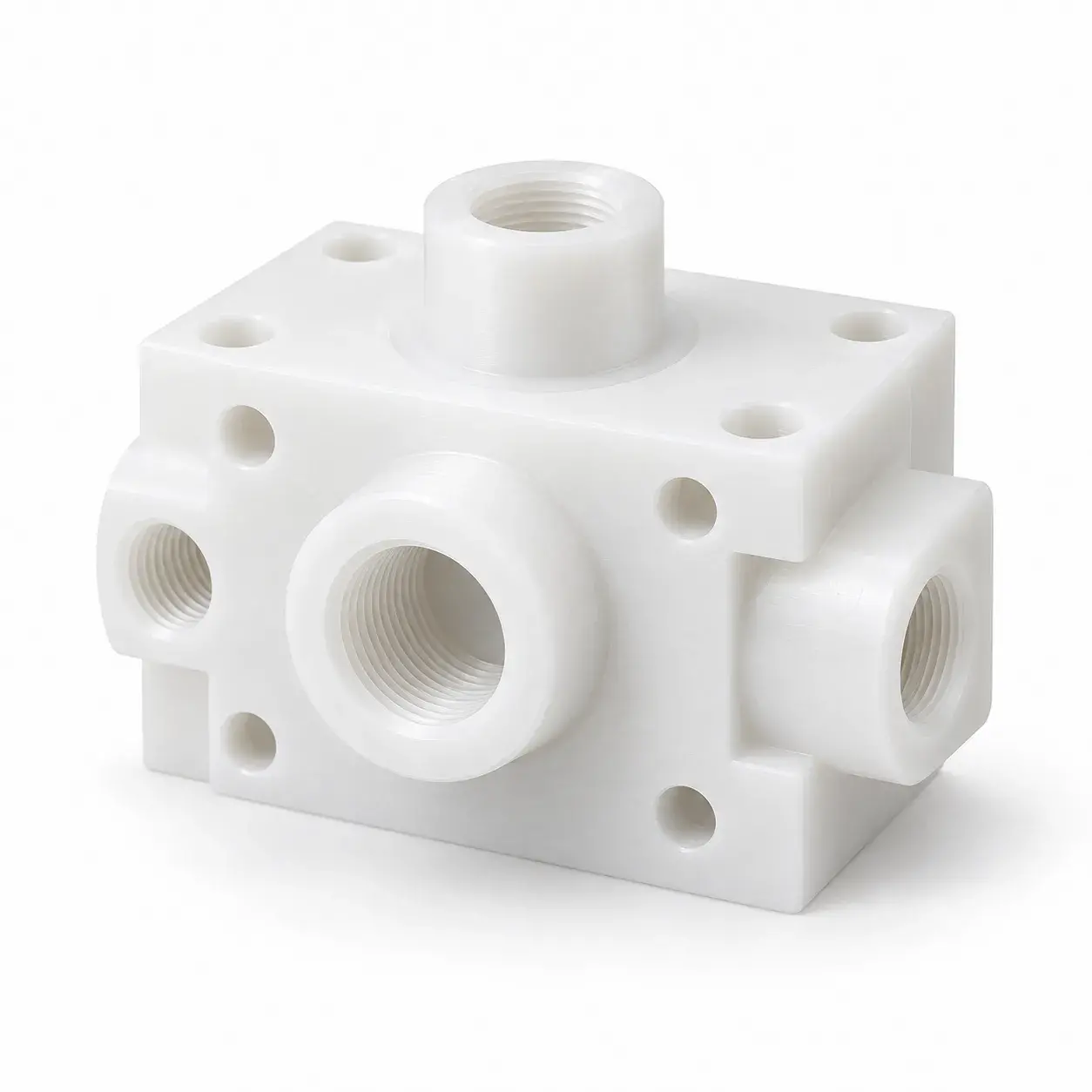

POM-C

Good dimensional stability and chemical resistance for fluid-handling parts, fixtures and general engineering components.

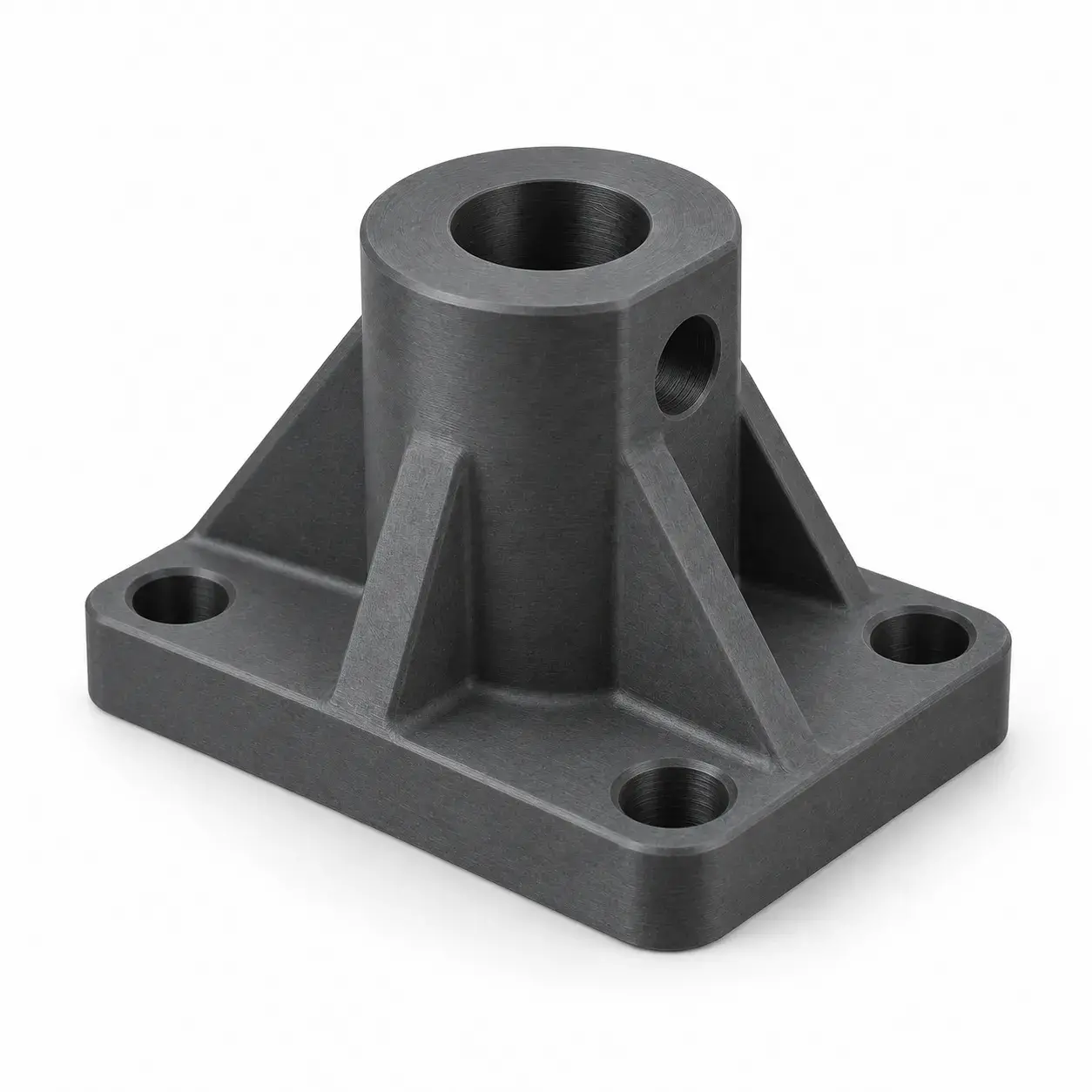

Glass-Filled POM

Higher stiffness and dimensional stability for structural parts that need improved rigidity.

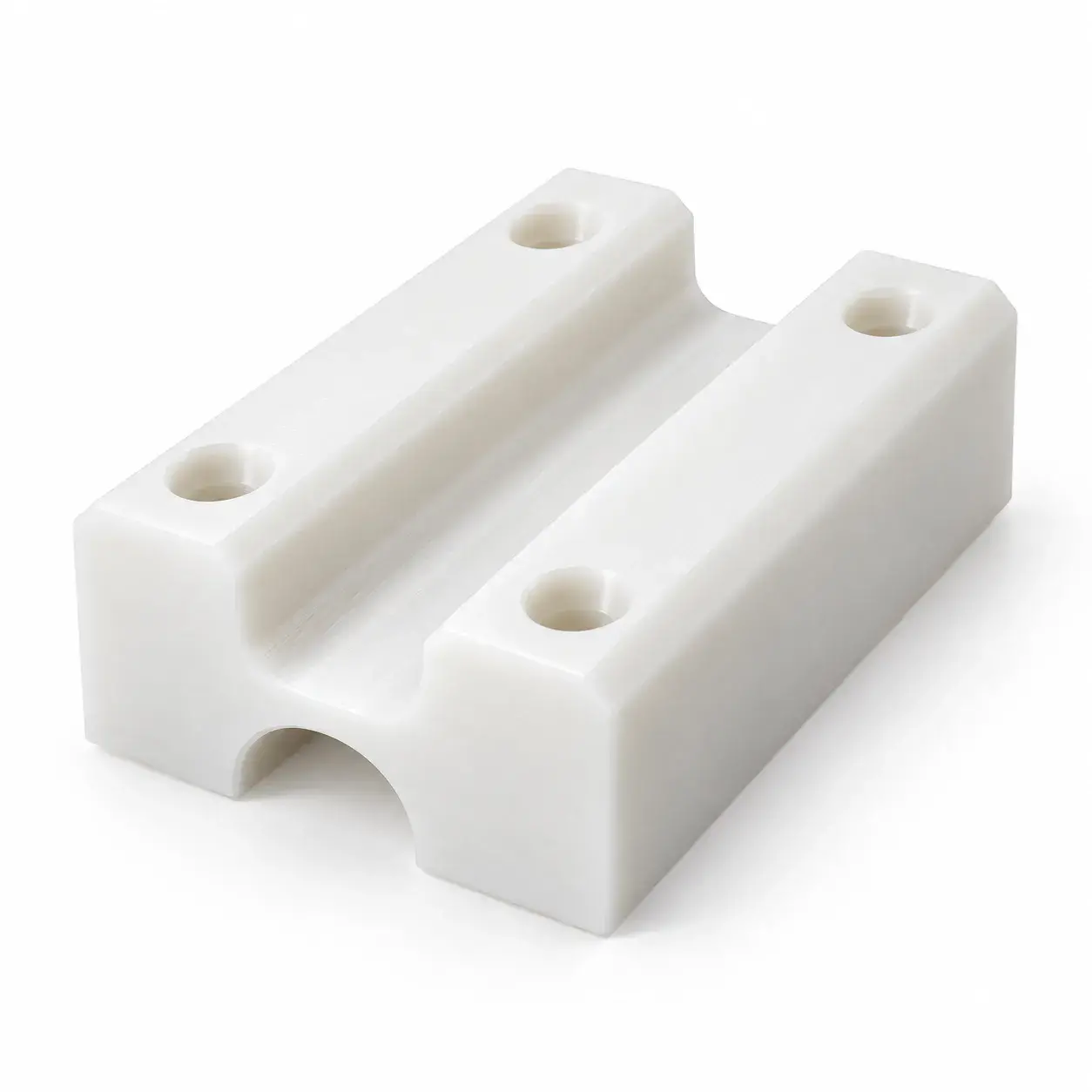

Lubricated POM

Designed for low-friction and wear applications such as guides, sliding parts and moving assemblies.

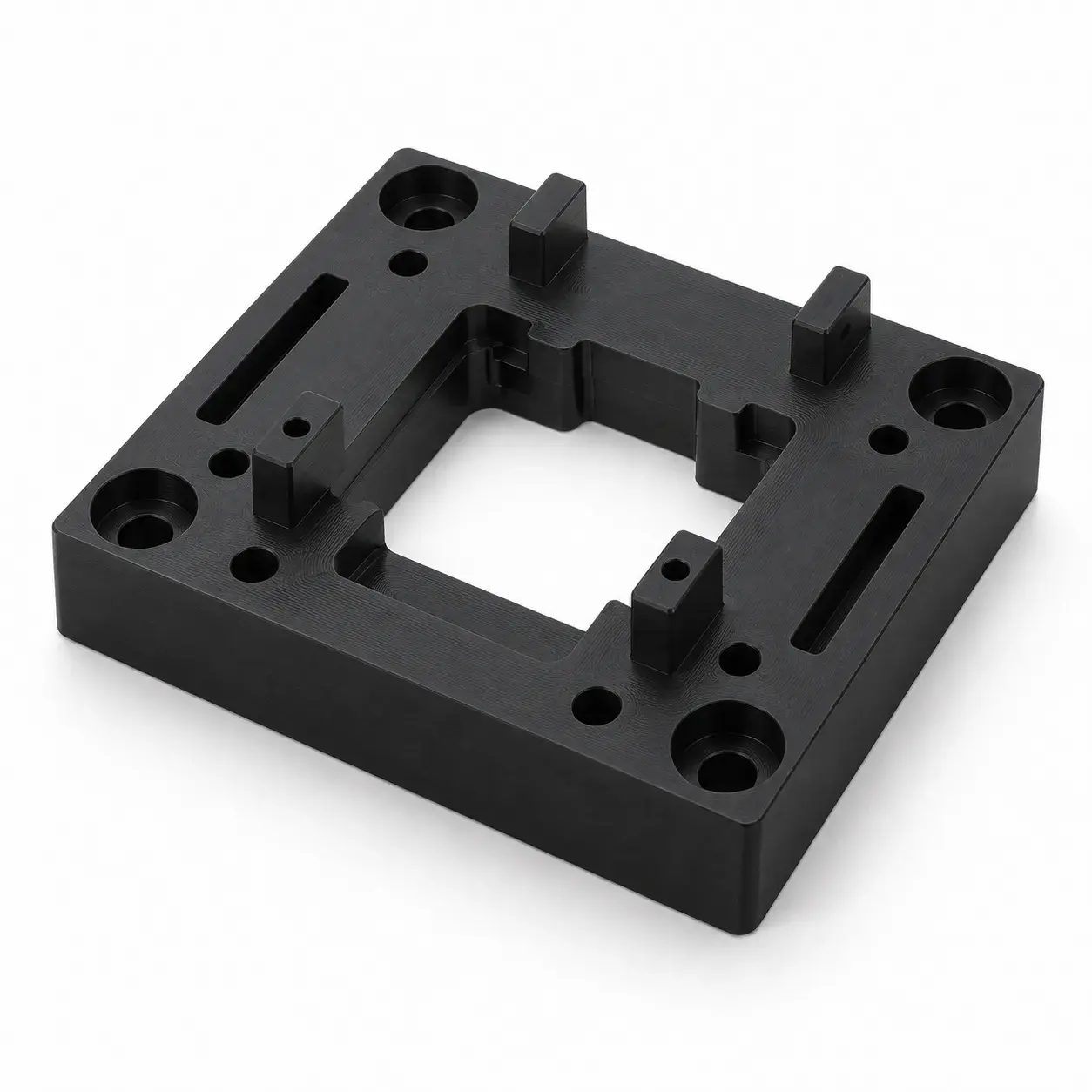

ESD / Antistatic POM

Suitable for electrical, semiconductor and automation components where static control is required.

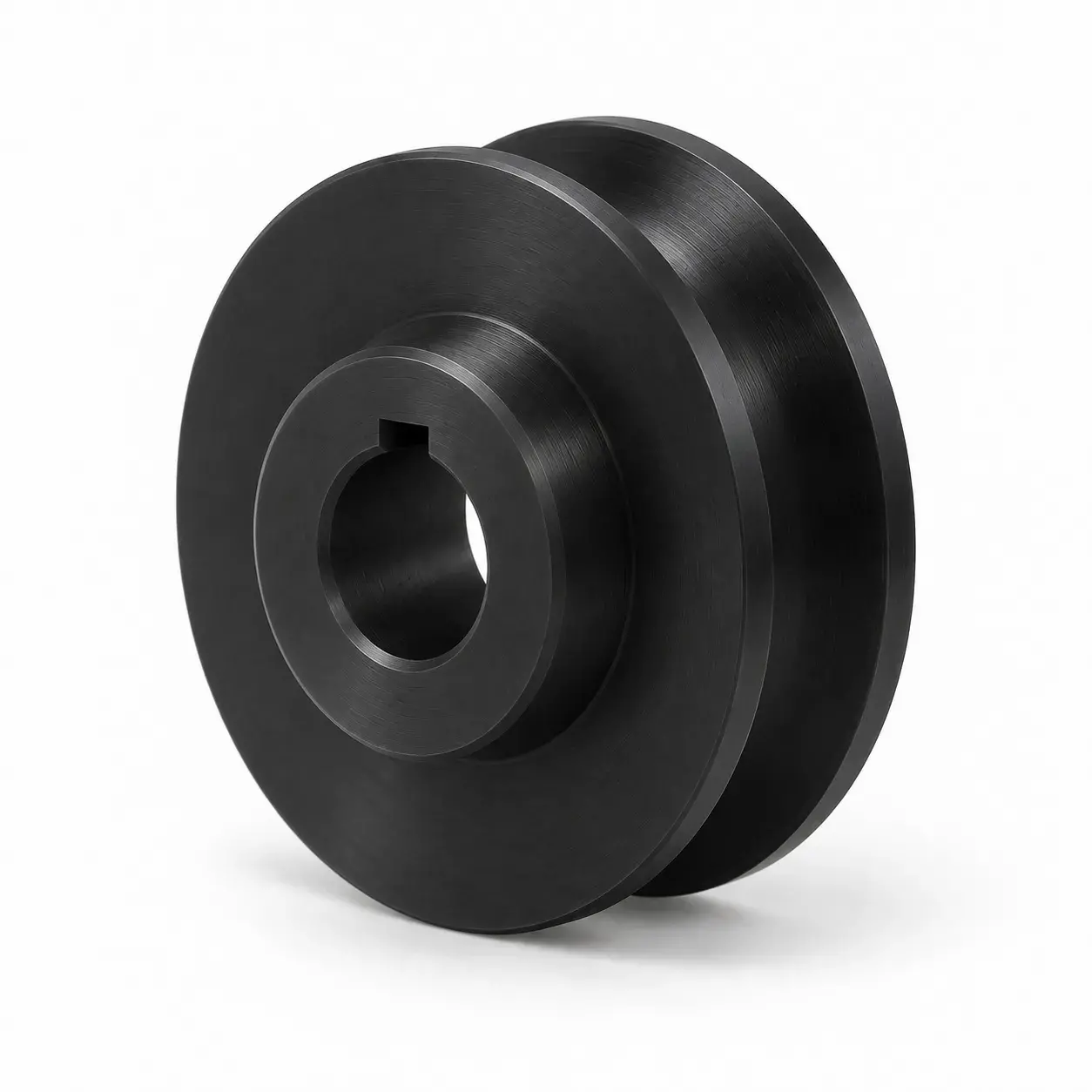

UV-Stabilized POM

Used for parts that may be exposed to UV light or outdoor operating conditions.

POM-H or POM-C: Which Is Better for Your Part?

POM-H and POM-C are both common choices for POM CNC machining, but they behave differently in strength, chemical resistance and long-term use. The better option depends on the part geometry, operating environment and performance requirements.

Property	POM-H	POM-C
Strength & Stiffness	Higher	Slightly lower
Wear Resistance	Excellent	Very good
Dimensional Stability	Excellent	Excellent
Chemical Resistance	Good	Better
Hot Water Resistance	Moderate	Better
Centerline Porosity Risk	Higher	Lower
Typical Applications	Gears, bushings, bearings, precision mechanical parts	Fluid components, fixtures, manifolds, general engineering parts
Best Choice When	Higher strength and rigidity are priorities	Chemical resistance and lower porosity are more important

Not sure which grade fits your drawing? We can review your application and recommend the most suitable POM material based on tolerance, load, environment and part geometry.

How We Control Distortion in POM Machining

POM CNC machining requires careful control of heat, clamping pressure and material stress. Because POM expands more with temperature than metals, stable machining and inspection conditions are important for tight-tolerance POM machined parts</strong>.

Thermal Expansion

Typical POM-H grades can have a linear thermal expansion coefficient around 6–7 × 10⁻⁵ in/in/°F, while POM-C grades may be around 13 × 10⁻⁵ 1/K over moderate temperature ranges. For tight-tolerance POM machined parts, machining and inspection temperature should therefore be kept as stable as practical.

Rough, Rest and Finish

For large or flat POM parts, rough machining can release internal stress and cause movement. Pre-machining, followed by a stabilization or stress-relief stage before final machining, can help improve dimensional stability on critical features.

Controlled Workholding

Because POM is much less rigid than metals, excessive clamping pressure can distort thin walls and flat sections during machining. Fixtures should support the part evenly rather than simply increasing clamping force.

Moisture and Dimensional Stability

Typical POM-H grades show around 0.20–0.25% water absorption after 24 hours, while some POM-C grades may be around 0.05–0.10% over 24–96 hours. Critical dimensions should therefore be considered together with the part's operating environment.

Custom POM CNC Machined Parts

We manufacture a wide range of POM CNC machined parts, Delrin parts and acetal components for prototypes and low-volume production. Typical parts include gears, bushings, rollers, spacers, fixtures, valve components and other precision mechanical parts.

White POM (Acetal) CNC machined gear showing wear resistance and durability

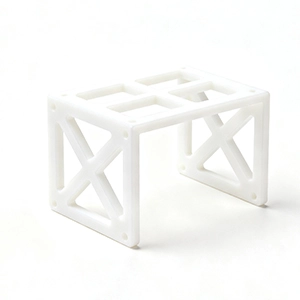

POM (Delrin/Acetal) CNC machined parts with high stiffness and low friction

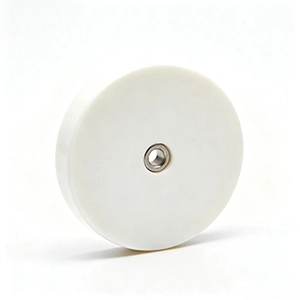

Precision POM CNC milled components for mechanical and automotive use

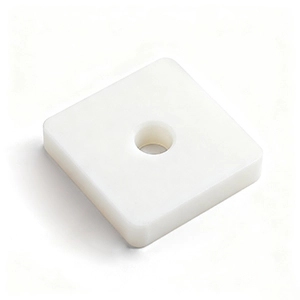

Custom POM CNC prototype parts with excellent dimensional stability

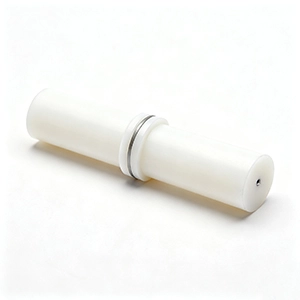

POM CNC turned bushings and spacers with smooth finish and tight tolerance

Why Choose YUANYI for POM Machining

We support POM CNC machining, Delrin machining services and custom acetal parts from prototypes to low-volume production, with machining methods selected around part geometry, tolerance and material behavior.

Tight-Tolerance Plastic Machining

Critical POM machined parts can be produced to tolerances down to ±0.005 mm where geometry and material conditions allow.

Multiple CNC Processes

3-axis, 4-axis, 5-axis, turning, Swiss machining and mill-turn capabilities allow us to select the right process for different POM CNC parts.

Prototype to Low-Volume Production

We support one-off prototypes, design validation and repeat low-volume orders with no MOQ.

Inspection and Documentation

Dimensional inspection, FAI reports and material certificates are available based on drawing and project requirements.

DFM Support for Plastic Parts

We review wall thickness, flatness, tolerances, clamping risks and material movement before production to reduce machining issues.

Fast Prototype Turnaround

Prototype Delrin parts and POM components can typically be completed in 3–5 working days depending on complexity.

Where POM Parts Are Commonly Used

Our POM CNC machined parts, Delrin parts and acetal components are used in applications that require low friction, good wear resistance, dimensional stability and reliable mechanical performance.

Automation Equipment

Guides, rollers, locating blocks, spacers and wear components for automated production systems.

Robotics

Lightweight POM parts for joints, guides, bushings and low-friction motion assemblies.

Medical Equipment

Precision Delrin machined parts for housings, fixtures and non-implant mechanical components.

Semiconductor Equipment

ESD and antistatic POM components for fixtures, holders and equipment parts used in controlled environments.

Automotive & Mobility

Bushings, clips, rollers, gears and other wear-resistant acetal parts for mechanical assemblies.

Industrial Equipment

Custom POM CNC parts for valves, conveyors, pumps, tooling and general machinery.

Ready to Machine Your POM Parts?

Send us your drawing for a fast DFM review and quote for POM CNC machining, Delrin parts and custom acetal components.

Frequently Asked Questions

1.What tolerance can you achieve on POM CNC parts?

For suitable geometries, critical dimensions on POM CNC parts can reach ±0.005 mm. Swiss-machined features may reach tighter tolerances depending on part size, wall thickness and material condition.

2.Can you machine Delrin parts?

Yes. We provide Delrin machining services for gears, bushings, rollers, spacers, fixtures and other precision mechanical components.

3.What is the difference between POM-H and POM-C?

POM-H generally offers higher stiffness and strength, while POM-C typically provides better chemical resistance and lower centerline porosity.

4.Does POM deform during CNC machining?

It can. Heat, clamping pressure and internal material stress may cause dimensional movement, especially on large, flat or thin-wall POM machined parts.

5.Can you machine thin-wall POM parts?

Yes, depending on geometry. Thin sections may require controlled workholding, lighter cutting loads and additional machining steps to reduce distortion.

6.What surface finish can you achieve on POM?

Typical machined finishes are around Ra 0.4–3.2 μm, depending on geometry, tooling and finishing requirements.

7.Do you accept prototype and low-volume orders?

Yes. We support one-off prototypes and low-volume POM CNC machining projects with no MOQ.

8.What files can I send for a quote?

You can send STEP, STP, IGES, SLDPRT, PRT, DWG, DXF, PDF and common image or compressed file formats.
