Precision Machining for TECAFORM Components
Custom Solutions for High-Performance TECAFORM Parts
| Standards | Detail |
|---|---|
| Max Part Size (X/Y/Z) | 2300 × 1500 × 600 mm |
| Minimum Feature Size | ⌀1 mm |
| Wall Thickness | 0.25 mm |
| Tolerance | ±0.01 |
| Surface Finish (as milled) | Ra 0.5–3.2 µm |
| Standard Lead Time | 3 working-days for rapid prototyping |
| Pricing Level | To be confirmed after design review |
| Type of Machine | Gantry CNC / 3-4-5-Axis CNC / Mill-Turn Compound CNC / Swiss-Type CNC / Turning Machine...etc... |

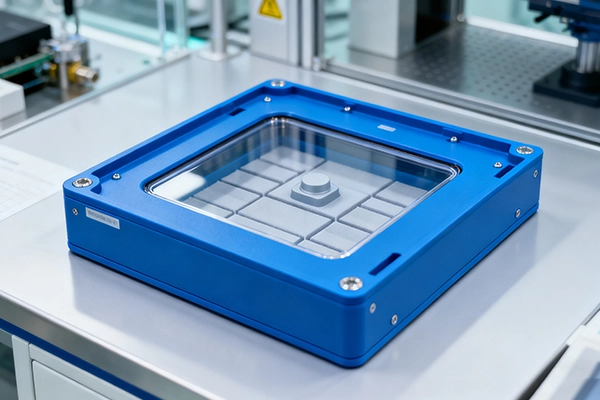

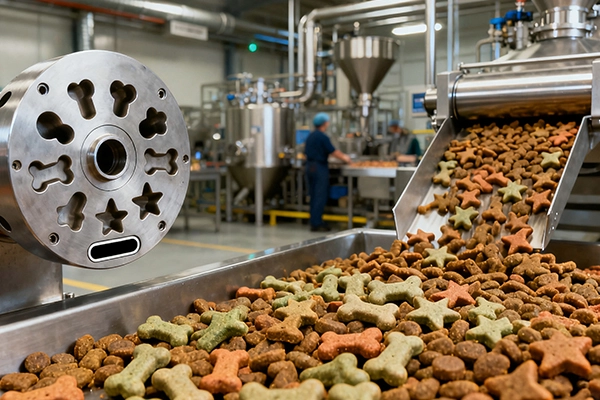

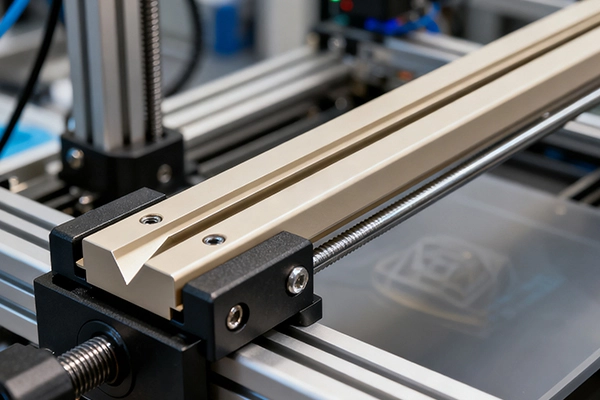

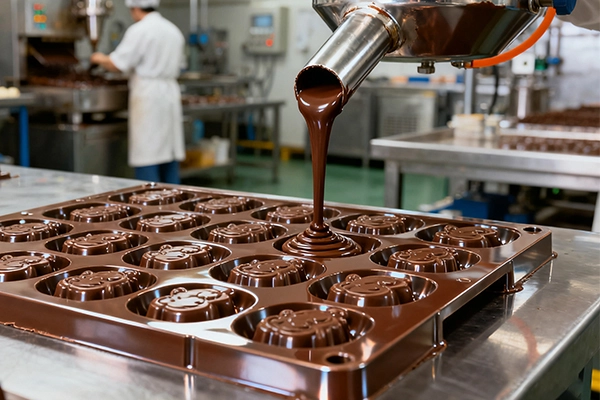

| Common Grades | AH (Natural), AH FG (Food Grade), AH Blue (Visual Detect), AH ID (Metal Detectable), AH ELS (ESD / Static Dissipative) |
Choose strength, wear, hygiene/detection, and ESD performance to fit your spec.
Use sharp O-flute/carbide and steady feed; add a light finish pass on cosmetic features.
Confirm documentation/spec (region-specific); keep edges crisp without over-deburr.
Machine like standard AH; maintain uniform surface texture for optical systems.
Tune feeds for crisp edges; verify detectability settings on your line.

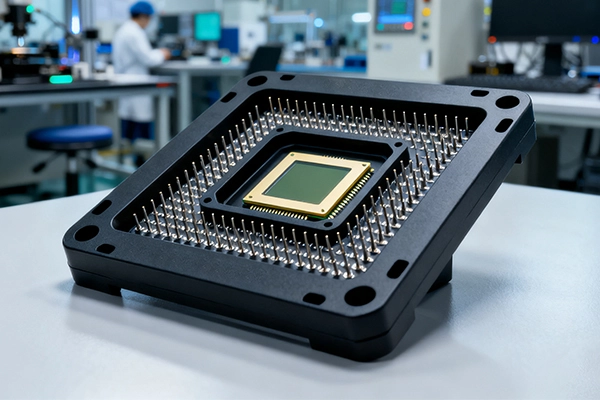

Adjust chip load for sharp edges; confirm resistivity targets and cleaning/handling specs.
