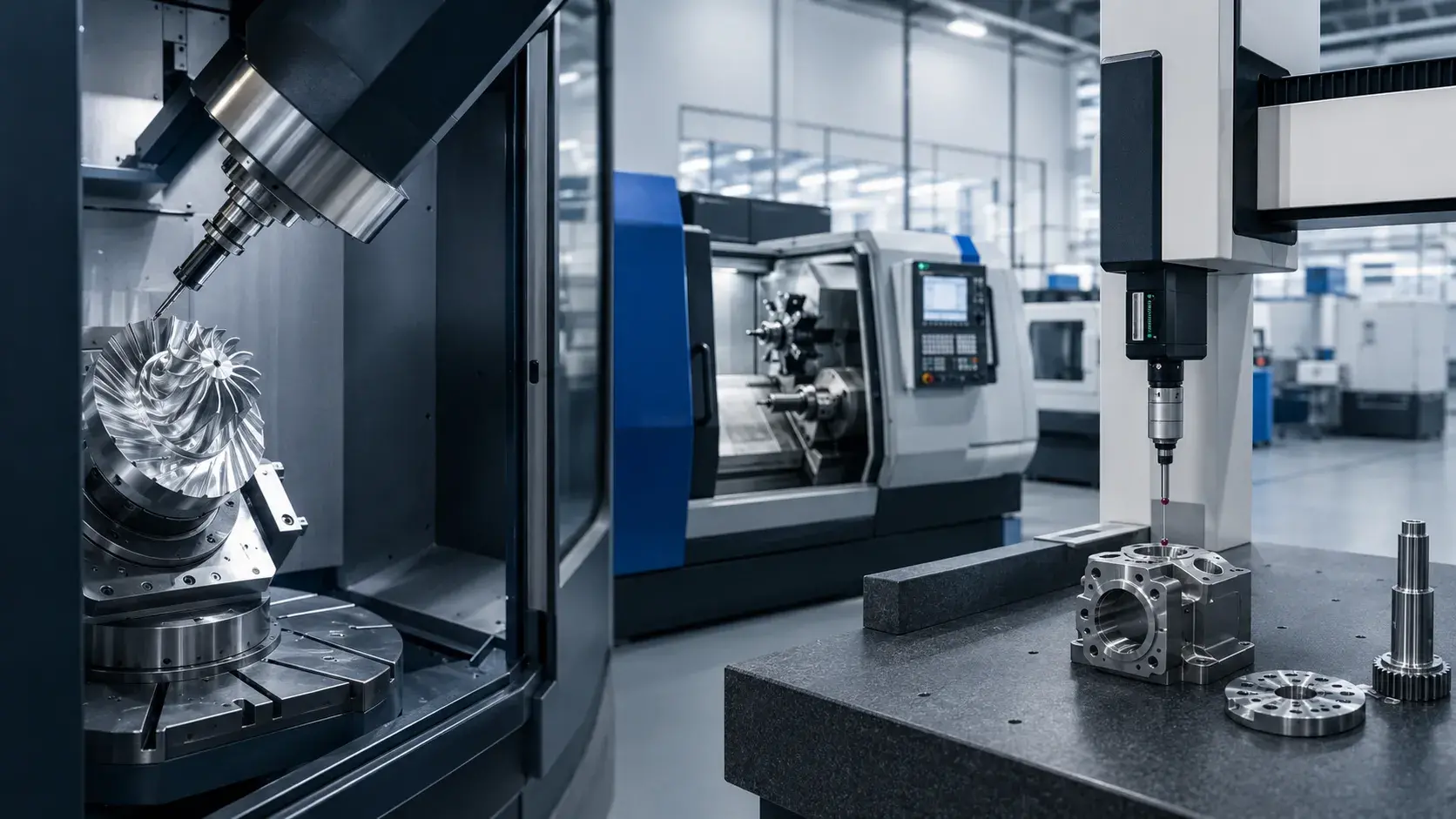

Modern CNC machining tolerances are influenced by several factors such as the machine’s performance, the characteristics of the material being used, the cutting conditions, the design of the fixture, and the inspection techniques employed.Typically, standard CNC machining can achieve tolerances ranging from ±0.01 mm to ±0.05 mm.With precision CNC machining and optimized conditions, this can be improved to around ±0.005 mm or even tighter.More advanced techniques like Swiss CNC machining can achieve even tighter tolerances, down to ±0.003 mm, particularly for smaller and more complex parts.
What Are CNC Machining Tolerances?
CNC machining tolerances define the acceptable amount of variation allowed between a part’s designed dimensions and its actual manufactured size.
They indicate how much deviation is permitted while still ensuring that the finished component meets functional and assembly requirements.
In CNC manufacturing, tolerances are usually expressed with a ± symbol on engineering drawings. For example, a dimension specified as 20.000 ±0.005 mm means that the finished part can have an actual measurement between 19.995 mm and 20.005 mm.
If the measured value falls within this range, the part meets the required tolerance and can pass dimensional inspection. However, if the measurement exceeds these limits, the part may not fit correctly or perform as expected.
Why Are CNC Machining Tolerances Important?
Controlling tolerances properly has a direct impact on how well machined parts perform and how reliable they are.
The correct tolerance ensures:
- That parts fit together properly when assembled
- That components work smoothly and reliably
- That products perform consistently over time
- That manufacturing costs stay within reasonable limits
If tolerances are too large, parts may face issues like improper fit, too much movement, or lower performance.
However, making tolerances too strict is not always the best choice.
Very tight tolerances can lead to longer machining times, more frequent inspections, and higher production costs.Engineers usually choose tighter tolerances only for important features that have a direct effect on how the part functions.

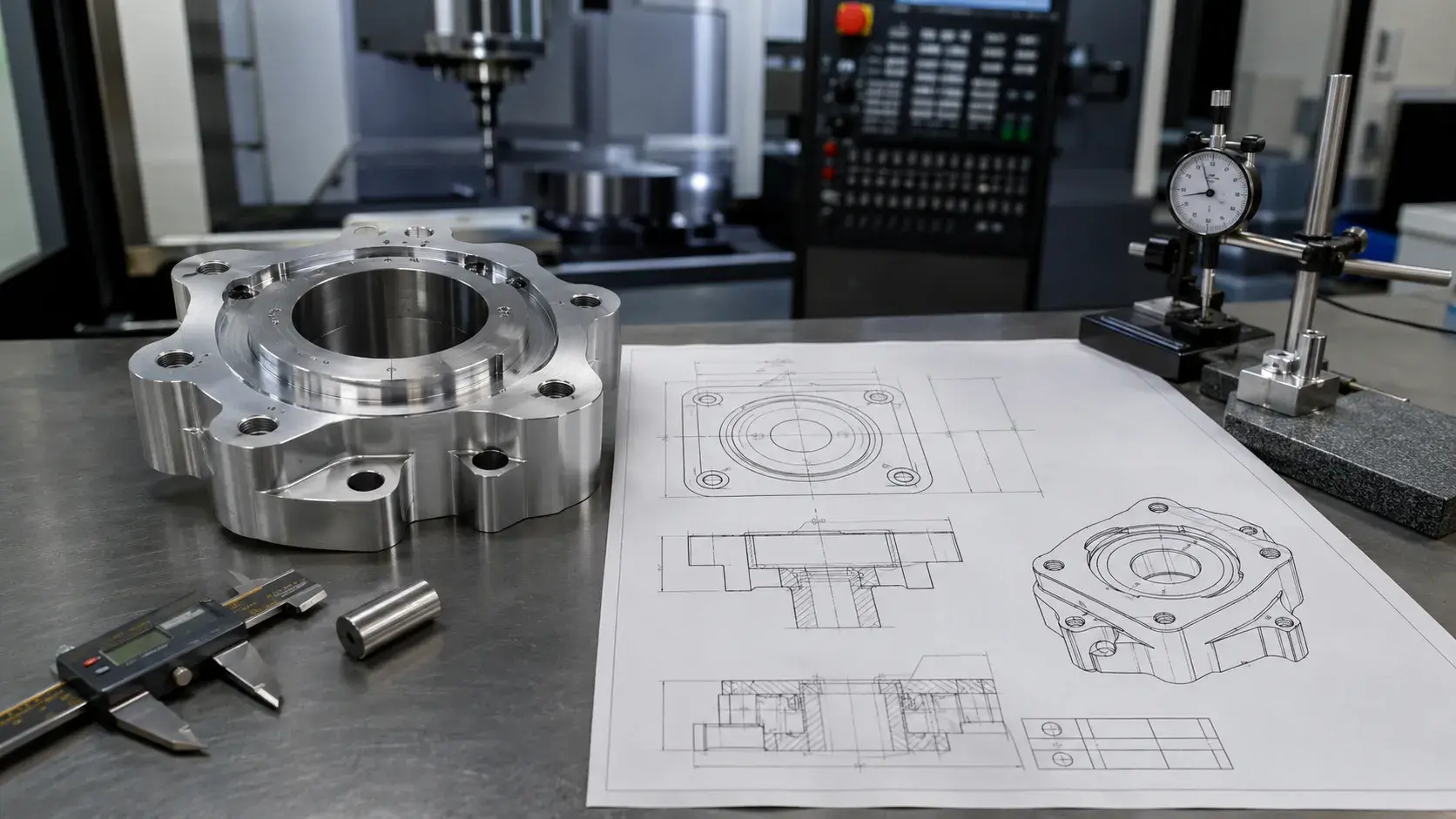

Common Types of Tolerances in CNC Machining
CNC machining tolerances can be classified into several types depending on how dimensions and part features need to be controlled. The most common tolerance types used in CNC manufacturing include dimensional tolerances, unilateral and bilateral tolerances, geometric tolerances, and surface finish requirements.
Dimensional Tolerances
Dimensional tolerances define the acceptable variation of basic part dimensions, such as length, diameter, thickness, and hole size.
For example, a shaft diameter specified as:
20.00 ±0.05 mm
means the finished part can measure between:
19.95 mm and 20.05 mm
Dimensional tolerances are the most common type used in CNC machining drawings because they directly control the size of individual features.
Bilateral Tolerances
Bilateral tolerances allow variation in both positive and negative directions from the specified dimension.
For example:
50.00 ±0.05 mm
means the finished dimension can be:
49.95 mm to 50.05 mm
This type of tolerance is commonly used when a feature can be slightly larger or smaller without affecting the function of the part.
Unilateral Tolerances
Unilateral tolerances allow variation in only one direction, either above or below the specified dimension.
For example:
10.00 +0.00/-0.05 mm
means the finished part can measure between:
9.95 mm and 10.00 mm
This tolerance type is often used when a part must fit into another component and exceeding a certain size would prevent proper assembly.
Geometric Dimensioning and Tolerancing (GD&T)
GD&T controls the shape, orientation, and position of part features rather than only their size.
Common GD&T requirements include:
- Flatness
- Parallelism
- Perpendicularity
- Position
- Concentricity
For precision components, correct geometry is often just as important as dimensional accuracy. A part with correct dimensions may still fail to assemble if features are not properly aligned.
GD&T is widely used in aerospace, medical, robotics, and other industries requiring high precision.
Surface Finish Requirements
Surface finish defines the smoothness of a machined surface and is usually specified by roughness values such as Ra.
Although surface finish is not a dimensional tolerance, it is often considered together with CNC tolerances because it affects:
- Sealing performance
- Friction
- Wear resistance
- Part appearance
For example, precision shafts, medical components, and sealing surfaces often require tighter surface finish control.
Standard CNC Machining Tolerances
The achievable tolerance of a CNC machined part depends on the machining process, equipment capability, material, part geometry, and production requirements.
In general, standard CNC machining can achieve tolerances around ±0.01 mm to ±0.05 mm. For precision CNC machining, manufacturers can typically achieve ±0.005 mm or tighter when using suitable equipment and optimized machining processes.
The table below shows common tolerance ranges for different CNC machining processes.
| CNC Machining Process | Typical Tolerance Range |
|---|---|
| Standard CNC Machining | ±0.01–0.05 mm |
| Precision CNC Machining | ±0.005–0.01 mm |
| 5 Axis CNC Machining | ±0.005 mm |
| CNC Turning | ±0.005–0.01 mm |
| Swiss CNC Machining | ±0.003–0.005 mm |
| Mill-Turn Machining | ±0.005–0.01 mm |
For most mechanical components, standard tolerances are sufficient. However, parts used in aerospace, medical, robotics, and precision automation applications often require tighter control of critical dimensions.
How to Choose the Right CNC Machining Tolerance?
Choosing the right CNC machining tolerance depends on the function, material, manufacturing process, and cost requirements of the part. A tighter tolerance does not always mean a better part. The goal is to apply the required level of precision only where it affects performance and assembly.
Apply Tight Tolerances to Critical Features
Not every feature on a machined part requires the same tolerance level. Critical areas such as mating surfaces, bearing locations, sealing surfaces, and precision mounting holes usually require tighter control because even small dimensional variations can affect assembly or performance.
Consider the Impact on Manufacturing Cost
Tighter tolerances usually require more machining time, better tooling control, additional inspection, and stricter process management.
Consider Material Characteristics
Material properties can also affect achievable tolerances. Different materials respond differently during machining.
Select the Right Manufacturing Process
Different CNC processes have different accuracy capabilities. Simple parts may only require standard CNC milling or turning, while complex components with tight requirements may benefit from advanced processes such as 5 axis CNC machining, Swiss machining, or mill-turn machining.
Choosing the correct manufacturing method helps achieve the required tolerance without unnecessary processing costs.
Verify Tolerances Through Inspection

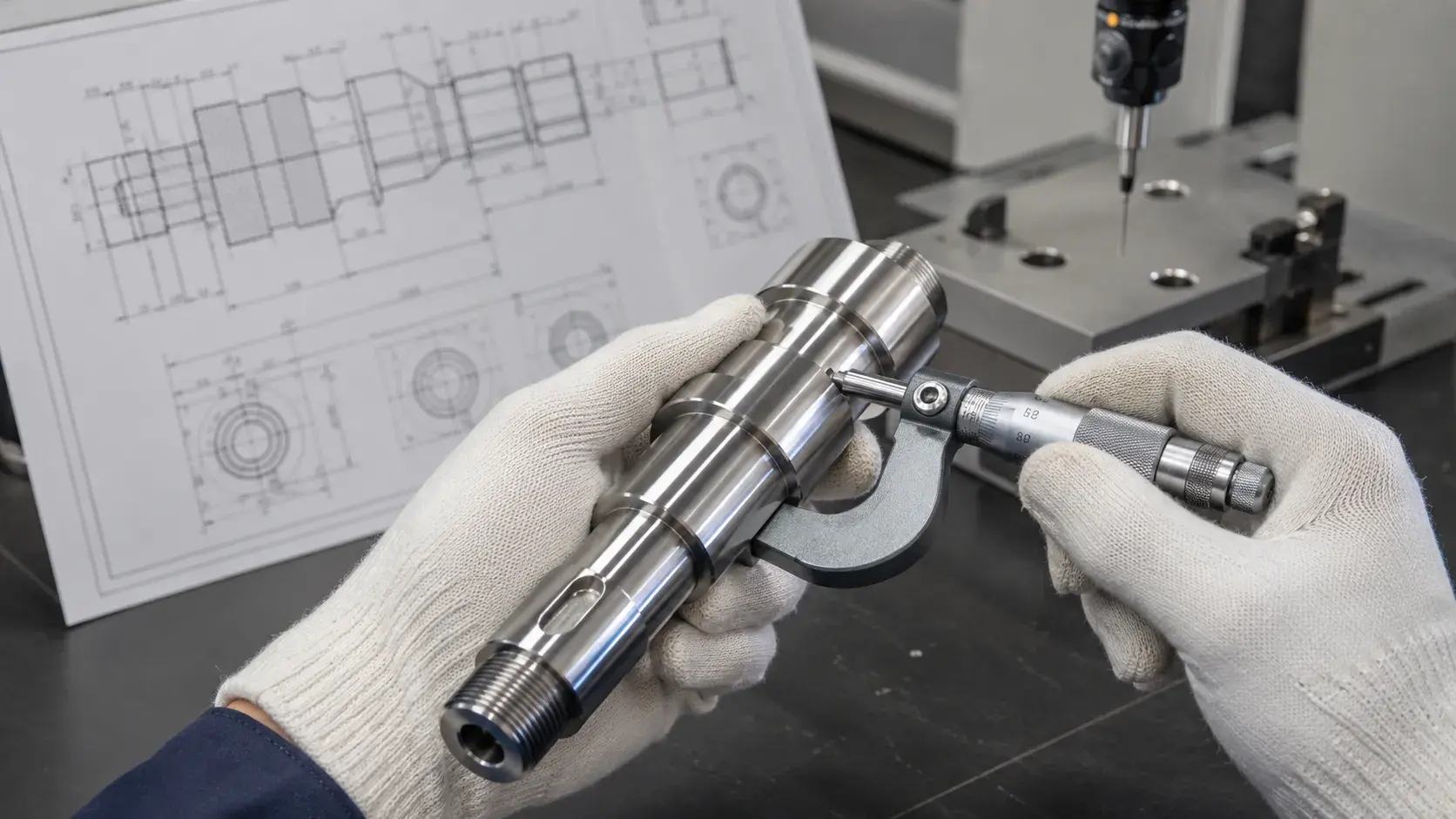

Strict tolerance requirements must be supported by reliable inspection methods. Manufacturers use measurement tools such as micrometers, optical measurement systems, and CMM machines to verify that finished parts meet drawing specifications.
Proper inspection ensures that dimensional accuracy is maintained throughout production.
How Do Manufacturers Achieve Tight CNC Machining Tolerances?
Achieving tight CNC machining tolerances involves more than just using precise equipment.
It relies on a combination of advanced machinery, skilled engineers, well-optimized machining procedures, and dependable inspection methods.
Advanced CNC Equipment
Manufacturers choose various machining technologies based on the complexity of the part, the material used, and the required tolerances.
For parts with multiple surfaces, 5-axis CNC machining can decrease the number of setups needed and enhance the alignment of features.For small and precision parts, Swiss CNC machining offers superior control over dimensions, while mill-turn machining integrates turning and milling functions to boost efficiency and consistency when producing intricate components.
These advanced machining techniques help minimize positioning errors, increase the consistency of results, and maintain accurate performance throughout the production process.
Engineering and Process Planning
Before starting the machining process, engineers evaluate the design of the part, the properties of the material, the accessibility of tools, the sequence of machining operations, and the necessary fixtures.
Effective planning helps identify possible issues before production begins and ensures that the chosen machining approach can meet the required tolerances.
By using CAD/CAM programming and machining simulations, engineers can refine tool paths, check for potential collisions, and lower the chances of dimensional errors during actual machining.
Precision Inspection and Quality Control
Inspection is essential for maintaining consistent CNC machining tolerances.
Manufacturers use precision measurement tools such as Coordinate Measuring Machines (CMMs), dimensional inspection instruments, and surface roughness analyzers to confirm that finished parts comply with the specified drawings.
A thorough inspection process not only verifies the accuracy of the final product but also helps detect variations in the production process.
At YUANYI, precision inspection and dimensional checks ensure that machined parts meet customer specifications before they are shipped.
How YUANYI Guarantees CNC Machining Accuracy
Achieving consistent CNC machining tolerances involves more than just using advanced machinery.It also requires a comprehensive manufacturing process that integrates machining expertise, engineering know-how, and strict quality checks.At
YUANYI, we offer precise CNC machining solutions for complex components through various advanced techniques such as 5-axis CNC machining, Swiss CNC machining for small and intricate parts, CNC milling and turning, and mill-turn machining.
Our quality control process includes Coordinate Measuring Machine (CMM) inspections and dimensional checks, ensuring that the final parts match the customer’s design specifications.
Send your CAD files and drawings to YUANYI. Our engineering team will review your requirements and provide a machining solution with precision capabilities down to ±0.005 mm.
